How to electrify your house
Before upgrades

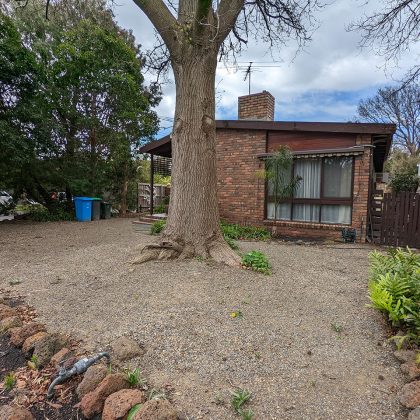

Our gas to electricity converted house is situated in Beaumaris, Victoria. This home was built in the 1970’s and is mostly original with gas ducted heating throughout and a gas storage hot water system.

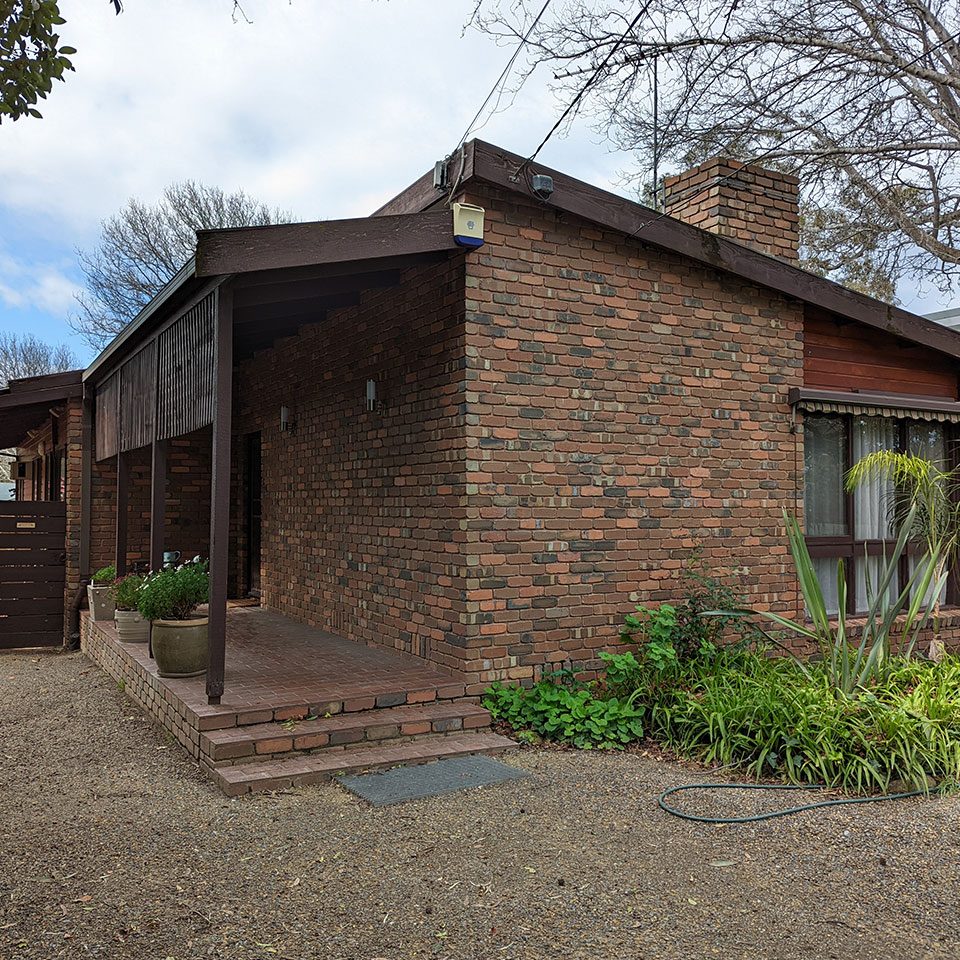

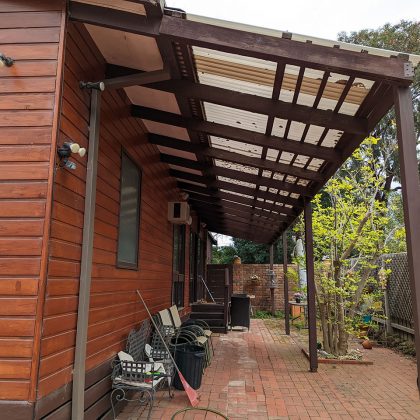

1970's construction

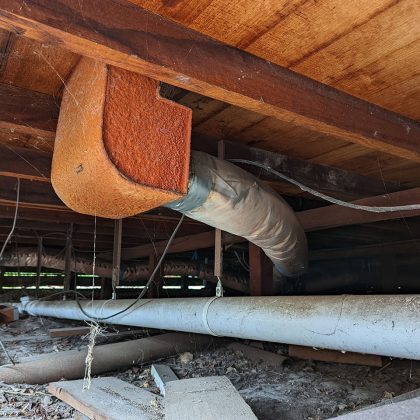

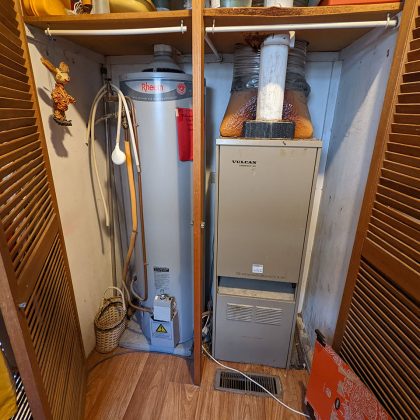

Gas ducted heating system

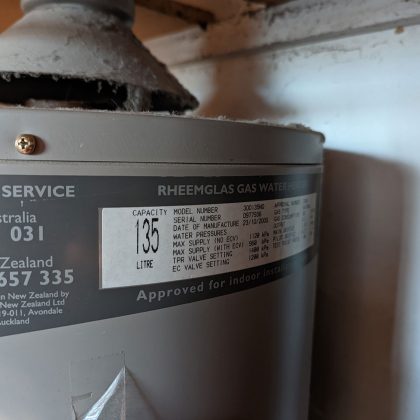

Gas storage hot water system
Scorecard Energy Star Rating: 1.7 Stars
(Average home built before 2000 is 2.0 Stars)
Date: September, 2022
Electricity consumption: 4,002MJ/annum
Gas consumption: 233,455MJ/annum
Energy costs: $4,200/annum
GHG emissions: 14,185kg C02e/annum

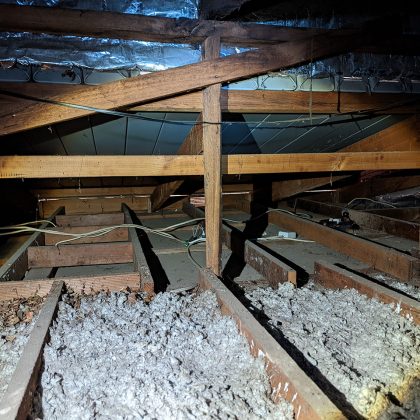

After building fabric upgrades
To bring this house up to an average star rating of ~3 Stars, we needed to complete some low-cost upgrades to areas of thermal loss and air leakage. This step signifies the importance of a thermally efficient building envelope and even when installing highly efficient appliances, they will not operate efficiently if the thermal envelope cannot assist with maintaining a comfortable temperature.
3 Star WELS rated shower heads
Permanently block the chimney
Weather seal all doors and windows
Seal wall vents and exhaust fans
Scorecard Energy Star Rating: 3.5 Stars
(Average home is 3.0 Stars)
Electricity consumption: 2,735MJ/annum
Gas consumption: 82,712MJ/annum
Energy costs: $1,595/annum
GHG emissions: 5,435kg C02e/annum
After electrifying your home
After making initial, low-cost improvements to achieve an ‘average’ energy star rating of ~3 Stars, we decommissioned all gas appliances and replaced them with high efficiency reverse cycle air conditioners, a heat pump hot water system and added a 6.6kW solar PV system.
Reverse cycle air conditioners (ZERL 2 Star Heating and 3 Star Cooling)
Heat pump hot water system
6.6kW Solar PV system
Scorecard Energy Star Rating: 10 Stars
(Creating surplus energy)
Electricity consumption: 8,281MJ/annum
Gas consumption: 0MJ/annum
Energy costs: –$501/annum
GHG emissions: –3,753kg C02e/annum

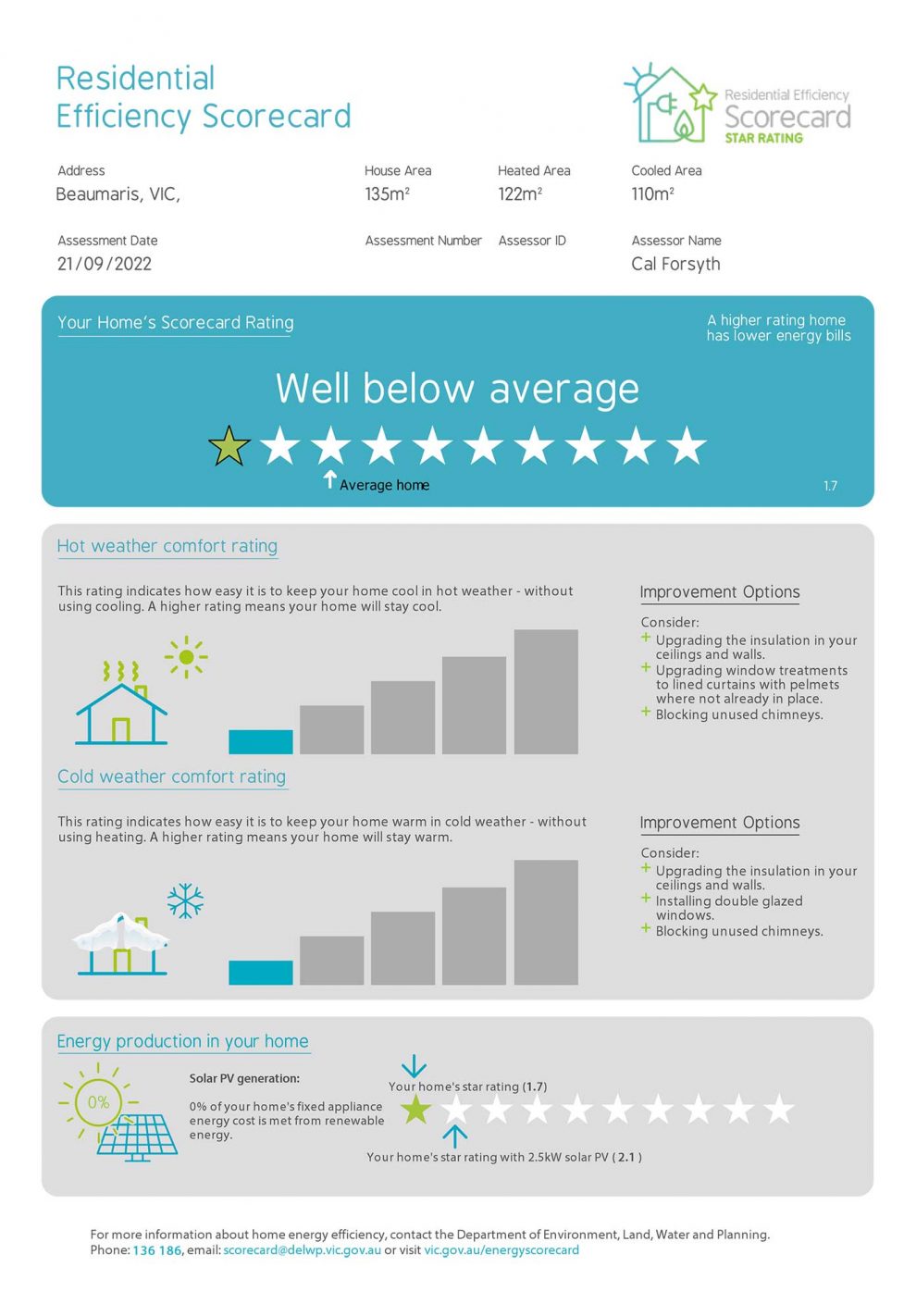

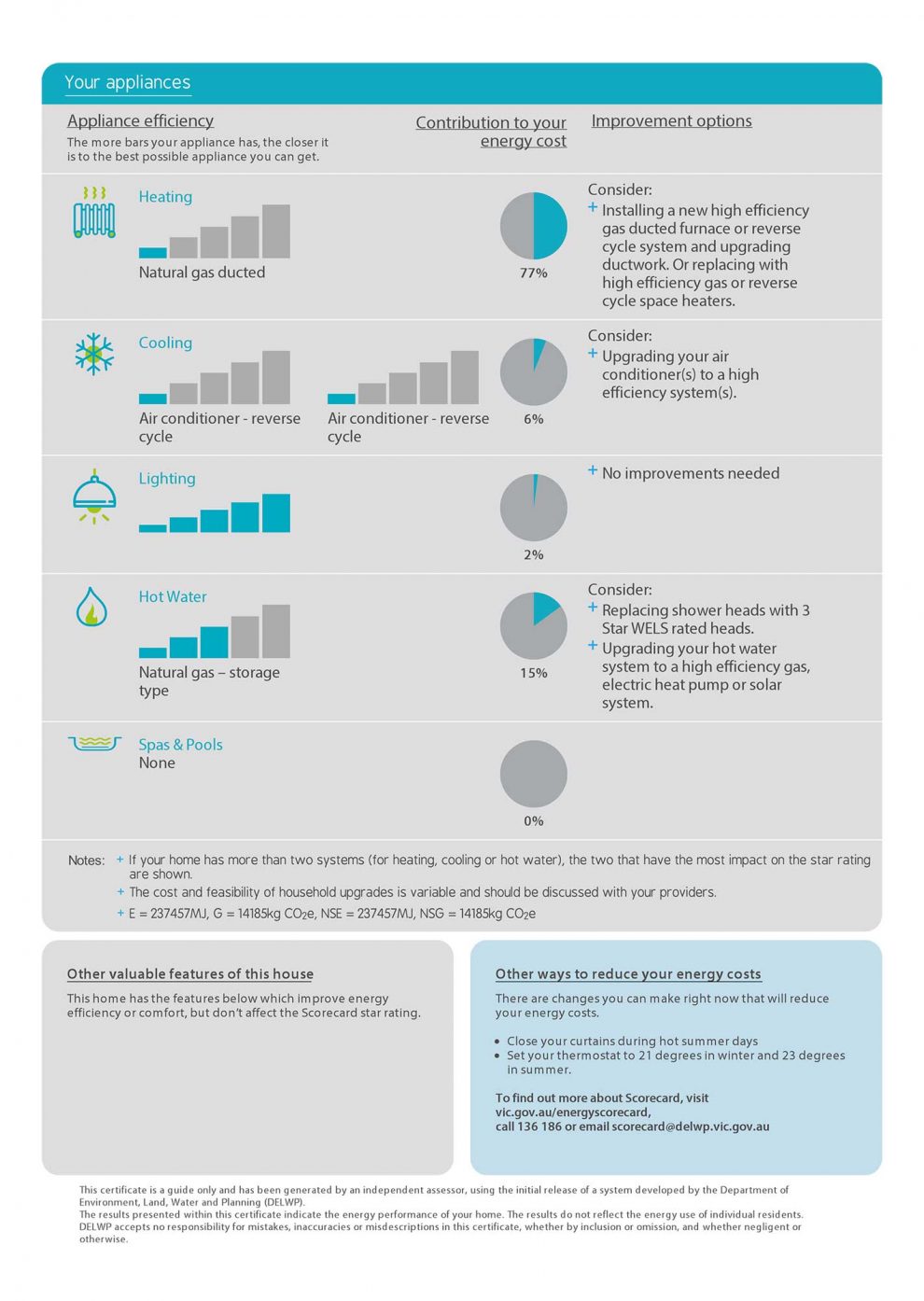

Scorecard rating before upgrades

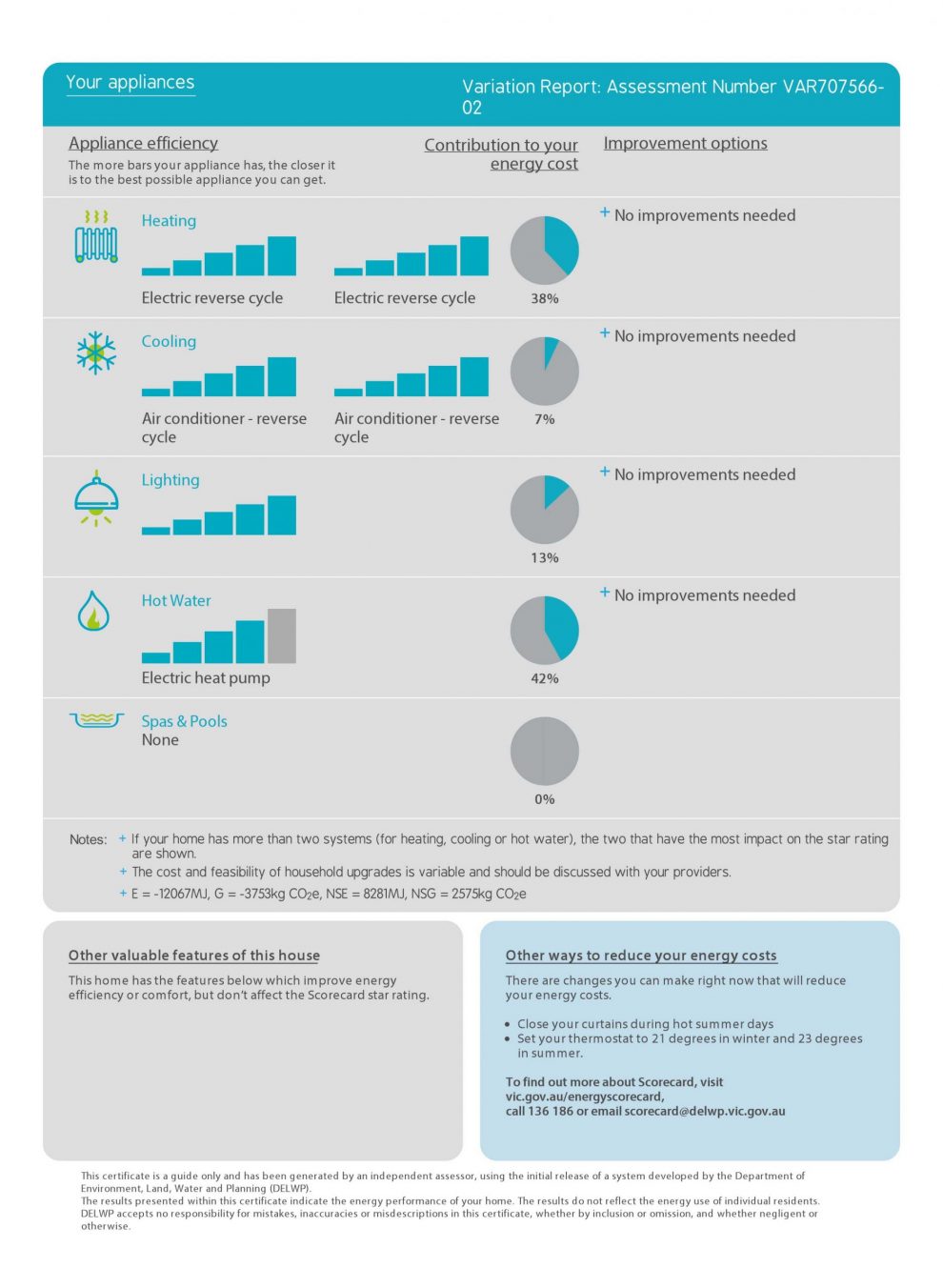

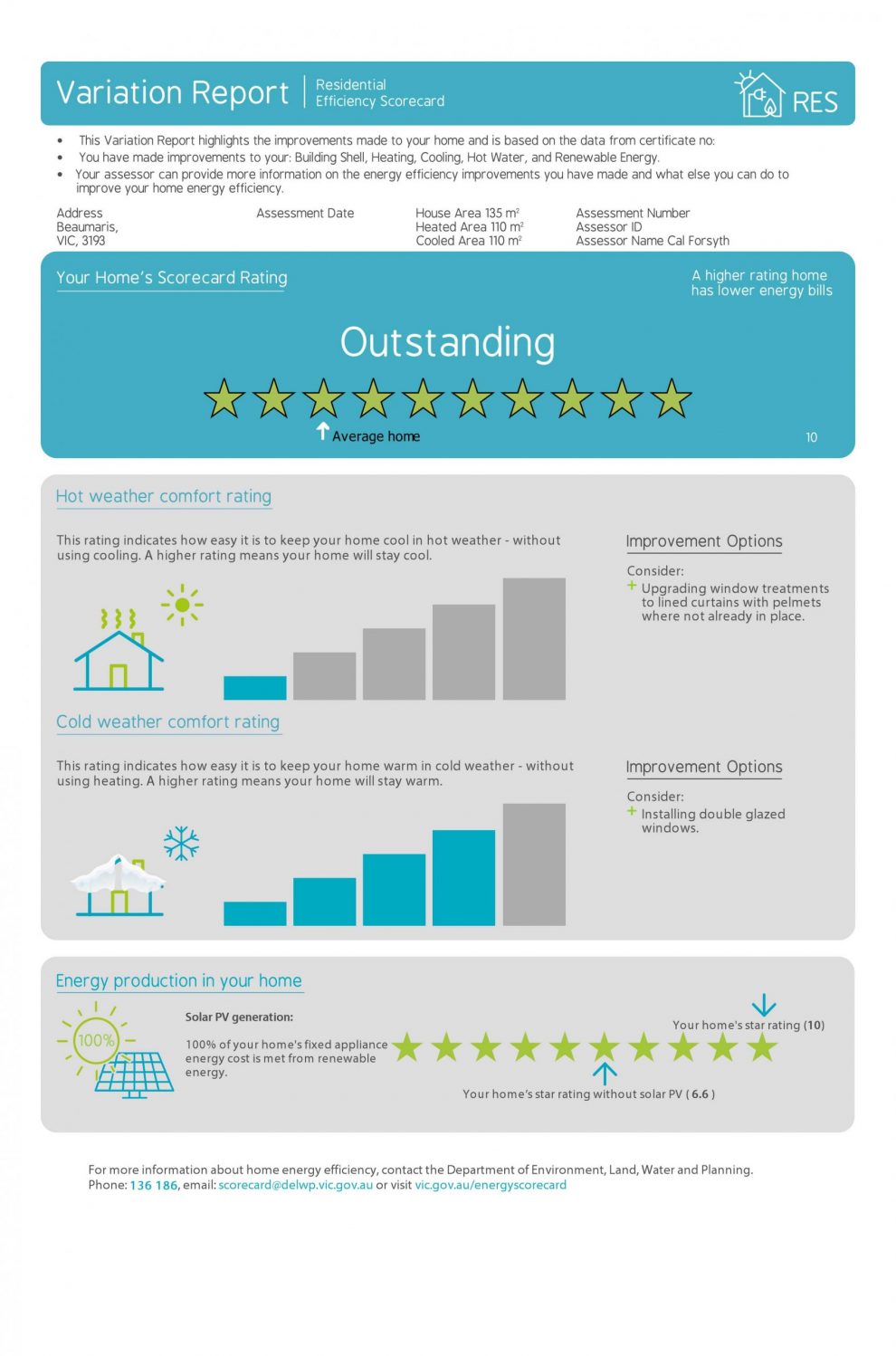

Scorecard rating after upgrades
Need a Scorecard assessment to build an all-electric upgrade pathway?
